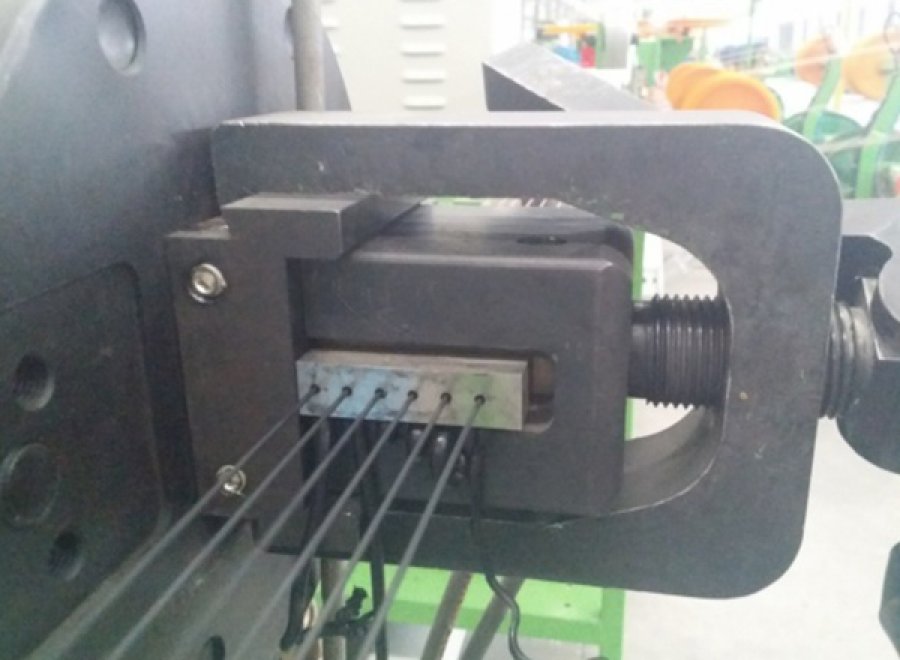

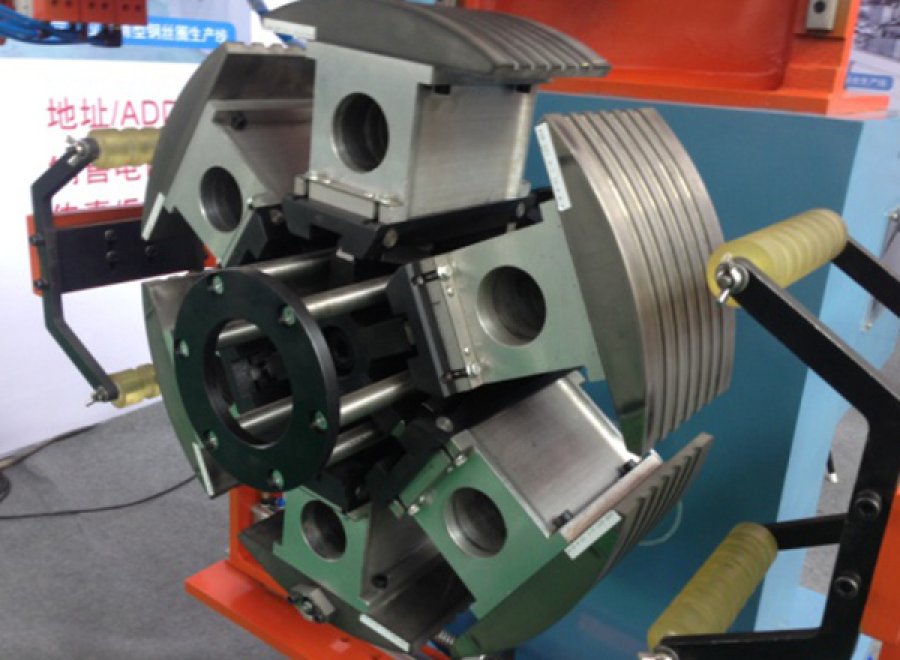

It is suitable for extruding, insulating, multi-coil pay-on and winding for radial tire hexagonal bead. For bead size of 12’’-28’’. It is an automatic winding line for 6 beads at one cycle , with characteristic of high automatization and high efficiency.
Already supplied
It is suitable for extruding, insulating, multi-coil pay-on and winding for radial tire hexagonal bead.
For bead size of 12’’-28’’. It is an automatic winding line for 6 beads at one cycle , with characteristic of high automatization and high efficiency.
Main parameters | |
Bead diameter | 12’’~28” |
Sectional form of steel wire bead | Hexagon/Rectangle |
wire diameter | Max φ1.42mm |
Bead number | 6 beads |
Max. rubberized wire diameter | Max φ1.72mm |
Max. arrangement width /height | 30mm/14mm |
Max. linear speed of winding | 300(for 20’’)m/min |
Storage of wires | ≤20m |
Screw diameter | Φ65mm(cold feed) |
L/D ratio | 12:1 |
Power | 84kw |
